Vodavi STS Expansion

Vodavi STS Expansion

Vodavi STS KSU

Vodavi STS KSU

Starts out at 4 lines in X 8 digital phone ports plus 2 analog station ports. In a single KSU configuration it is expandable to 12 lines in X 24 digital phones X 2 analog station ports. If analog phones are needed a maximum of 2) 4-port analog station cards can be added instead of the digital station cards.

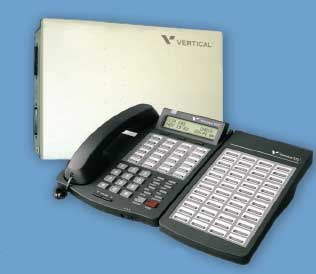

Vodavi STS Expansion KSU

Adds the capability to expand an existing STS to a maximum of 24 lines in X 48 digital phones X 4 analog station ports. In an analog configuration 2) 4-port analog station cards can be added.


STS Installation Cables

We have available a plug n play cable and block kit and a standard kit that includes a amp cable and 1 66 block that will connect an existing STS system to your existing wiring.

    Order Online

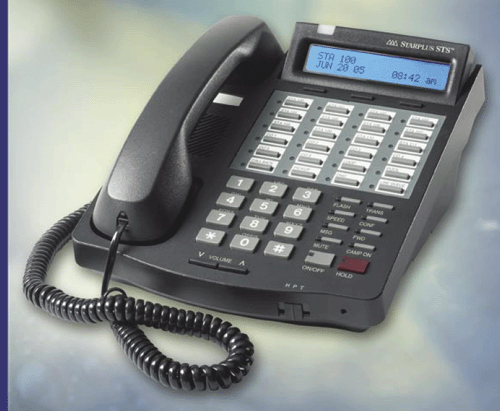

Vodavi STS Phone

Only one style of phone was manufatured for the Vodavi STs and it was a 24 button phone with a display. There is also a 24 button phone available for the starpuss STS that had a backlit display.

    Order Online


STS CO Trunk Cards

STS CO Trunk Cards

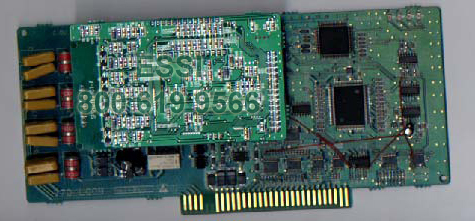

Vodavi STS CO Card

Provides the availablilty to add 4 additional incoming lines to an existing system. A maximum expansion of 12 lines can be added to a standard KSU or an expansion KSU.

    Order Online

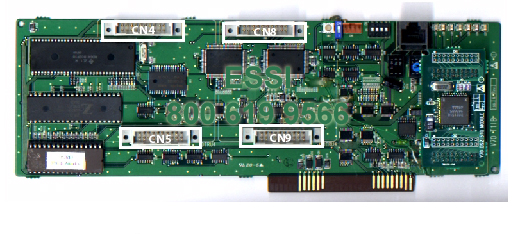

Vodavi STS T1 PRI Card

a digital ciruit provided by the service provider in the way of a T1 line or a PRI line can be directly connected to an existing STS with a maximum of 23 PRI channels or 24 T1 channels.


STS Station Cards

Vodavi STS Expansion

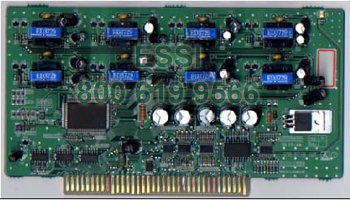

Vodavi STS Digital Station Card

Add an additional 8-digital station ports to an existing standard KSU or an exppansion KSU. the standard or expansion KSU can only provide a maximum of 24 digital station ports.

    Order Online

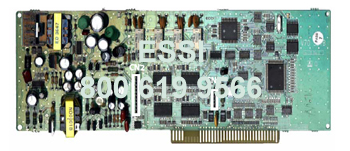

Vodavi STS Analog Station Card

If analog or single line phones are needed a 4 port analog station card can be added instead of a digital station card. A maximum of 2 analog station cards can be added to either a standard KSU or a expansion KSU inplace of a digital station card.



STS Model Module

Allows the capability of the programming of an STS phone system remotely over an existing phone line.
